SPECIFICATIONS

5MP Camera Audio: Built-in Microphone

8MP Camera Audio: Built-in Microphone and Speaker

AI Functions: Pet Detection

Alarm Action: FTP Photo,telefon Alarm,Email Photo,Local Alarm

App name: other

App/Client Name: Reolink

Audio Output: Two Way Audio

Brand Name: Reolink

Browser Supported: IE, Edge, Chrome, Firefox, Safari

Certification: CE,FCC,RoHS,weee

Color: WHITE

Color Night Vision: other

Connectivity: WIFI(Dual-Band)

Dimensions (L x W x D)(mm): 80 x 72 x 238mm

High Definition: 5.0 Megapixels

Hign-concerned Chemical: None

IP Rating: IP67

IR Distance: 30 Meters

IR Distance(m): 30m

Installation: Side,Wall Mounted,Pendant Mount

Internal Storage: None

Lens (mm): 4mm,2.7-13.5mm

Lens Quantity: Single Lens

Limited warranty: 2-year limited warranty

Megapixels: 5MP

Minimum Illumination(Lux): 100

Model Number: 5MP & 8MP IP Camera

Movement Range(Pan): other

Movement Range(Tilt): other

Network Protocol: HTTPS, HTTP, SSL, TCP/IP, UDP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

Operating Temperature: -10°-60°

Optical Zoom: other

Origin: Mainland China

Power Consumption(W): 5.5W

Power Mode: Mains Electricity

Power Supply: Normal,DC12V, <12V

Power Supply(V): DC12V/1A

Rechargeable Battery: None

Scene: Indoor and outdoor

Security IP Camera Storage: Micro SD card slot (Max. 256GB)

Sensor: CMOS

Sensor Brand: Omnivision

Shell Material: Metal

Smart home platform: alexa,Google Assistant

Special Features: Waterproof / Weatherproof

Style: Bullet Camera

Supported Mobile Systems: iOS,Android

Supported Operating Systems: Windows 10,Windows 8,Windows 7,Mac OS

TF Card: 256g tf card

Video Compression Format: H.264,H.265

Viewing Angle : 100°

Waterproof: IP67

WiFi Operating Frequency: 2.4GHz/5GHz

Zoom: 10X

Zoom type: Digital zoom

is_customized: No

Compare Your Security Camera Products Find the security solution that's right for you

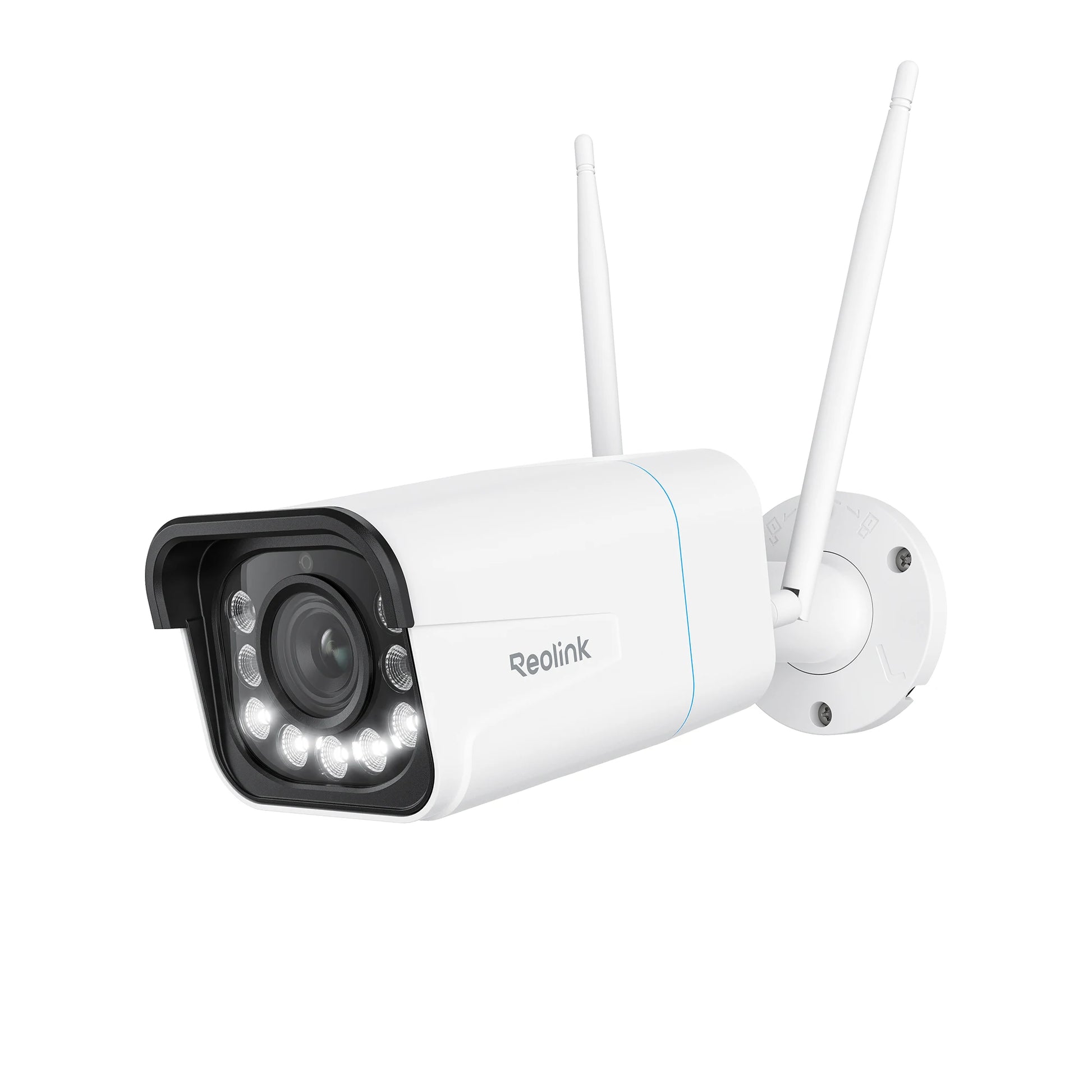

Model Number	5MP Cam NO ZOOM	8MP Cam NO ZOOM	8MP Cam 5X ZOOM
Image Sensor	1/2.7" CMOS	1/2.7" CMOS	1/2.8" CMOS
Default Video Info	2560x1920 (5 Megapixels)@20FPS	3840x2160 (8 Megapixels)@20FPS
Lens	f=4.0mm F=2.0 IR CUT	f=4.0mm/F1.6/IR CUT	f=2.7- 13.5mm/Max. F1.6/IR CUT
Zoom	10x Digital zoom only	10x Digital zoom only	5X optical zoom& 10x digital zoom
Video Format	H.264	H.264, H.265
Field of View	H: 80°; V: 48°; D:100°	H: 88.8°; V: 45.2°; D:106.2°	H: 100°-31°; V: 55°-17°; D: 123°-39°
Day&Night	IR-cut filter with auto-switching
Infrared Night Vision	30 Meters (100ft) (18pcs/14mil/850nm)	30 Meters (100ft) （2pcs/28mil/850nm）	30 meters (100ft) (4pcs/3W/850nm)
Spotlight	x	1pcs/4.3W/6500K/700Lumens	5pcs/4W/6500K/450Lumens
Color Night Vision	x	√	√
Audio	Built-in Microphone	Built-in Microphone and Speaker
Power	DC12V/1A
System	Reset Button
Network	One 10M/100Mbps RJ45
Storage	Micro SD Card Slot (support up to 256GB micro SD card)；Reolink NVR
OS Supported	PC: Windows, Mac OS; Smartphone: iOS, Android
Smart features	Person/vehicle/animal detection
Record Mode	Motion recording (default); scheduled recording; 24/7 recording
Protocols & Standards	HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Work with	Alexa,Google Assistant
Wireless Standard	IEEE 802.11a/ b/g/n	IEEE 802.11ac/ax/a/b/g/n
Operating Frequency	2.4 GHz/5GHz WiFi 5	2.4 GHz/5GHzWiFi 6
Wireless Security	WPA/WPA2	WPA/WPA2/WPA3
Waterproof	IP67
Dimension	Φ67 x 186mm	Φ67 x 187mm	80 x 72 x 238mm
Weight	415g	485.7g	862.8g
limited warranty	2-year limited warranty

2K+ 5MP Enhanced Definition

Elevate your viewing experience with 2K+ 5MP Super HD resolution, offering high image quality for precise monitoring and surveillance.

*The 8MP Cam supports 8MP.

Enhanced Nighttime Surveillance

Stay vigilant around the clock with infrared LEDs, providing clear and crisp images at night, ensuring reliable monitoring and security.

*The 8MP Cam supports color night vision.

2.4/5GHz Wi-Fi for Reliable Connection

Enjoy the reliability of 2.4/5GHz dual-band Wi-Fi for uninterrupted surveillance and smooth live viewing anytime, anywhere.

No Monthly Subscription

With local storage and on-device AI detection, this camera provides smart security with reduced false alerts while keeping your data private and secure. No monthly fees.



Smart Person/Vehicle/Animal Detection

Receive real-time notifications for suspicious people, vehicles, and animals. By distinguishing them from falling leaves or raindrops, the camera minimizes false alarms.



Supports SD Card, NVR, and FTP

This camera supports 24/7, scheduled, and motion-triggered recording with local storage on microSD card or NVR, plus backup options via FTP, or NAS.

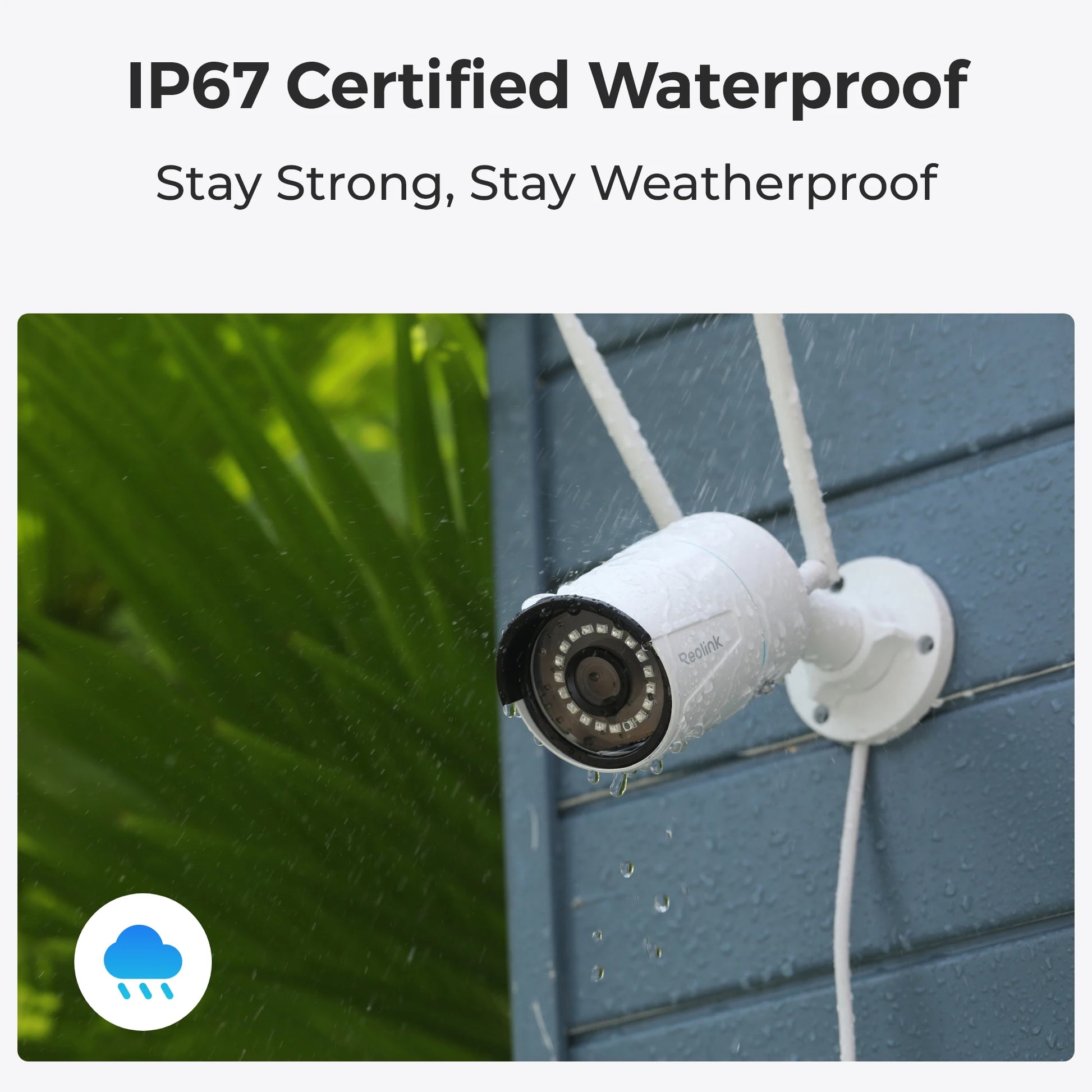

IP67 Waterproof Design for Outdoors

With an IP67 certification for weatherproofing, this camera offers robust defense against dust and rain, ensuring reliable performance in challenging outdoor conditions.



Compatible with Google Assistant

With Google Voice Control, you can effortlessly access your camera using simple voice commands, making monitoring your home a breeze.
